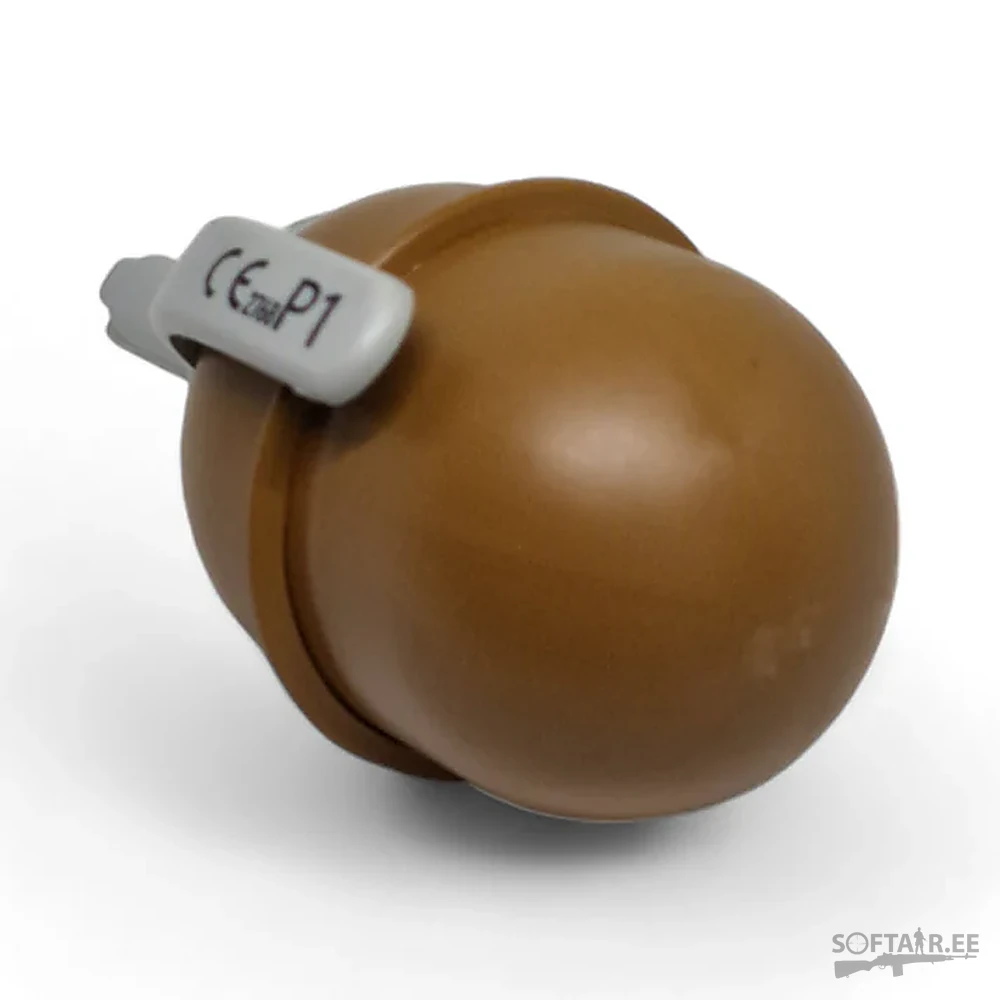

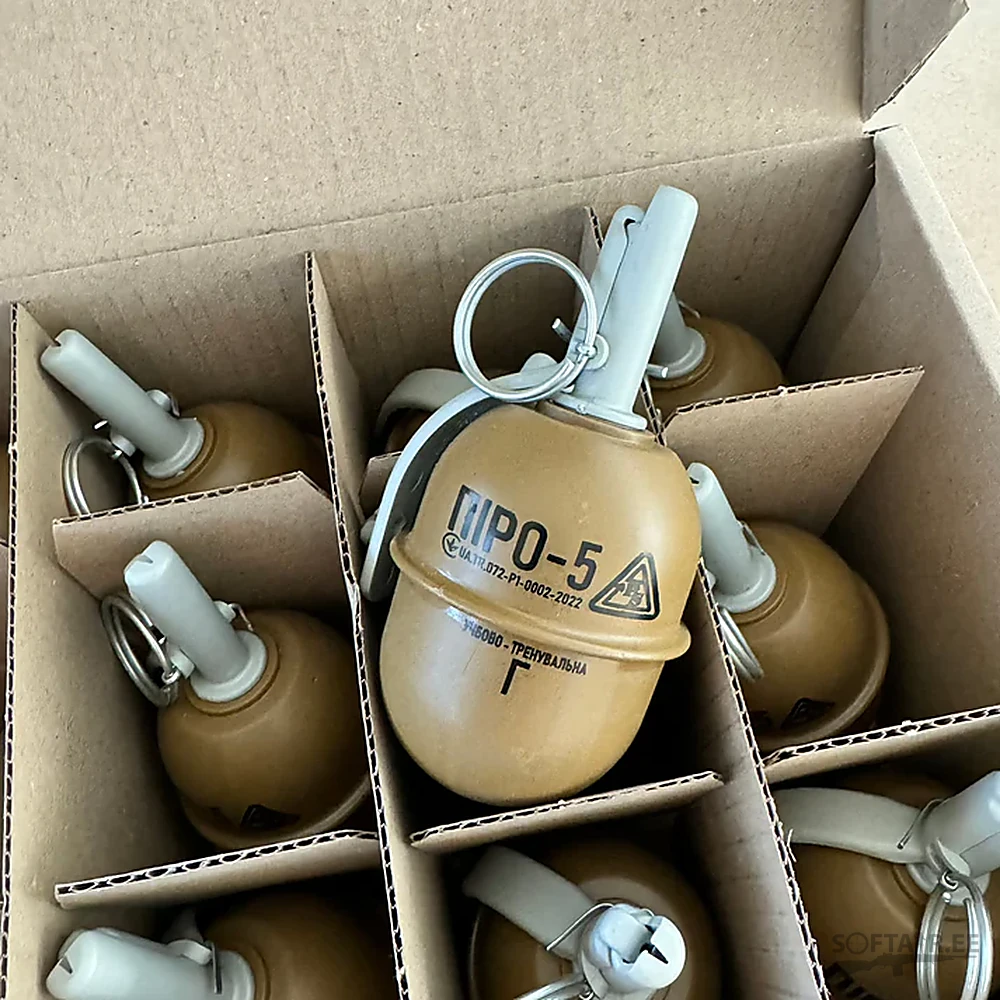

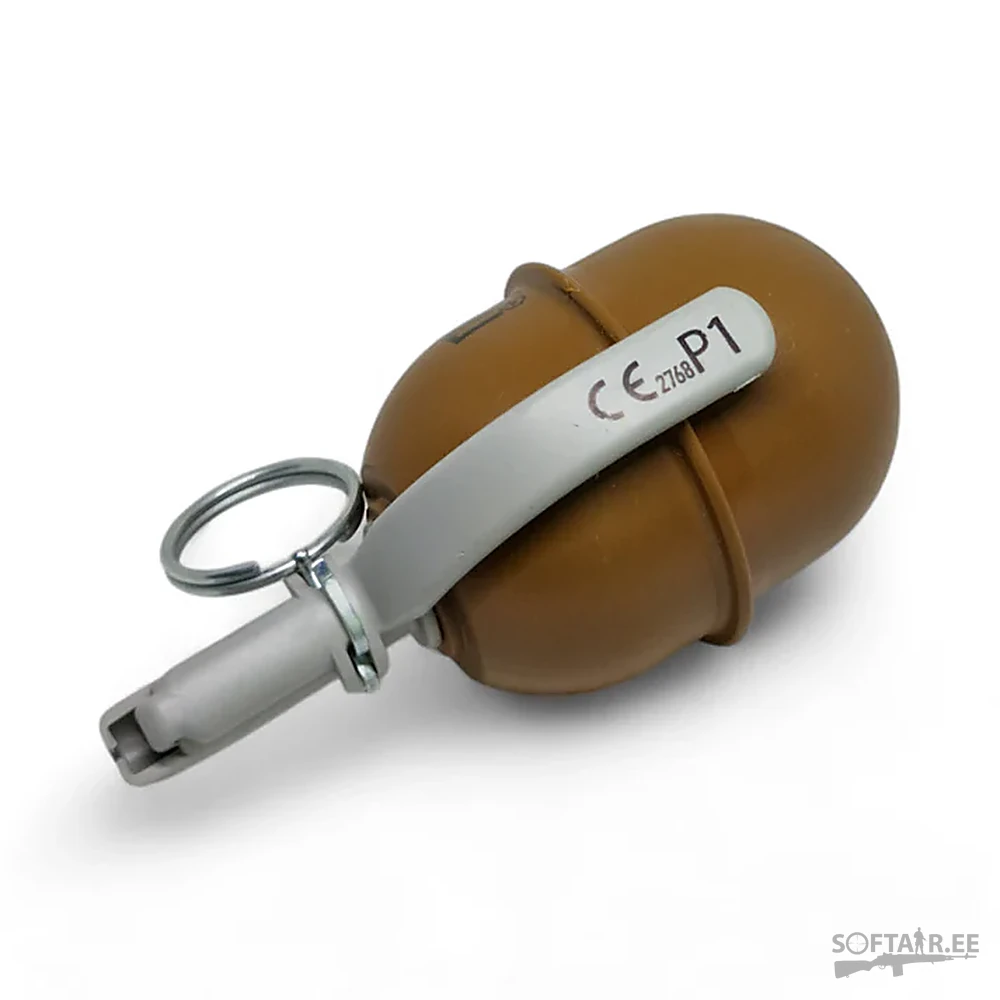

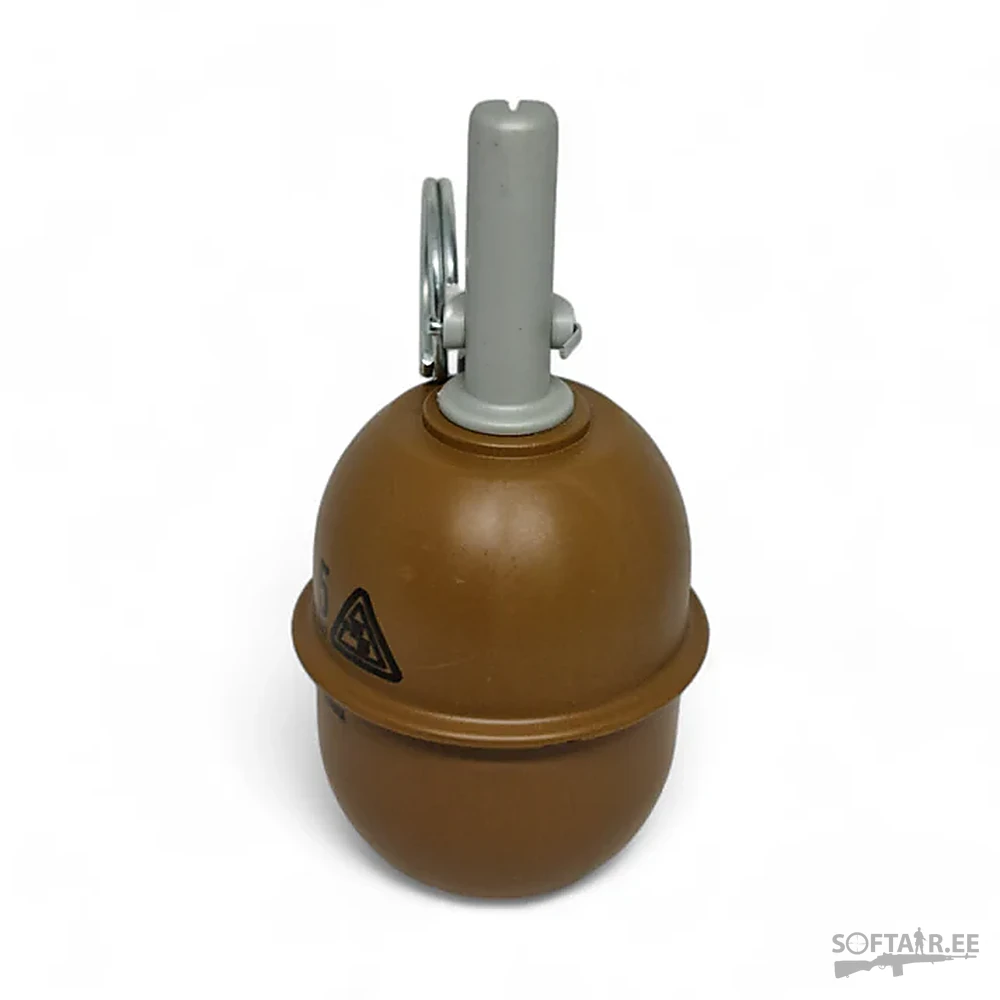

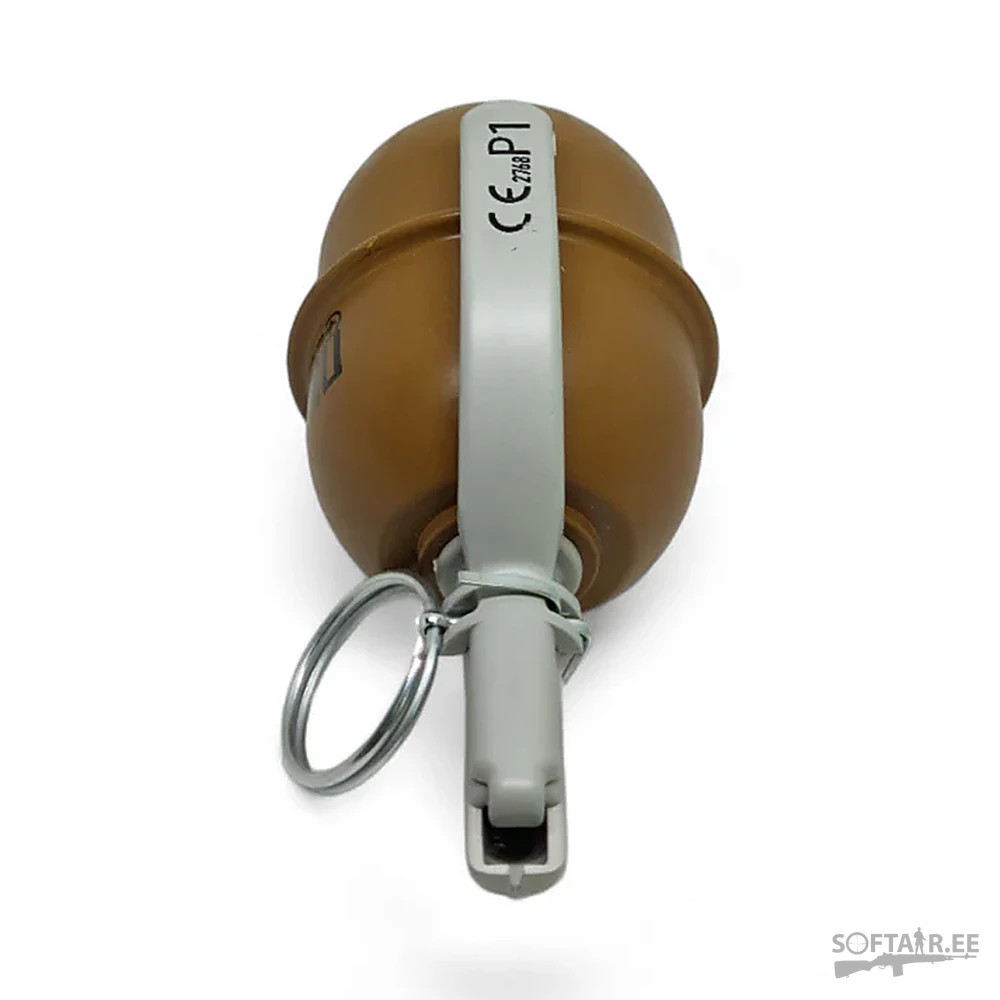

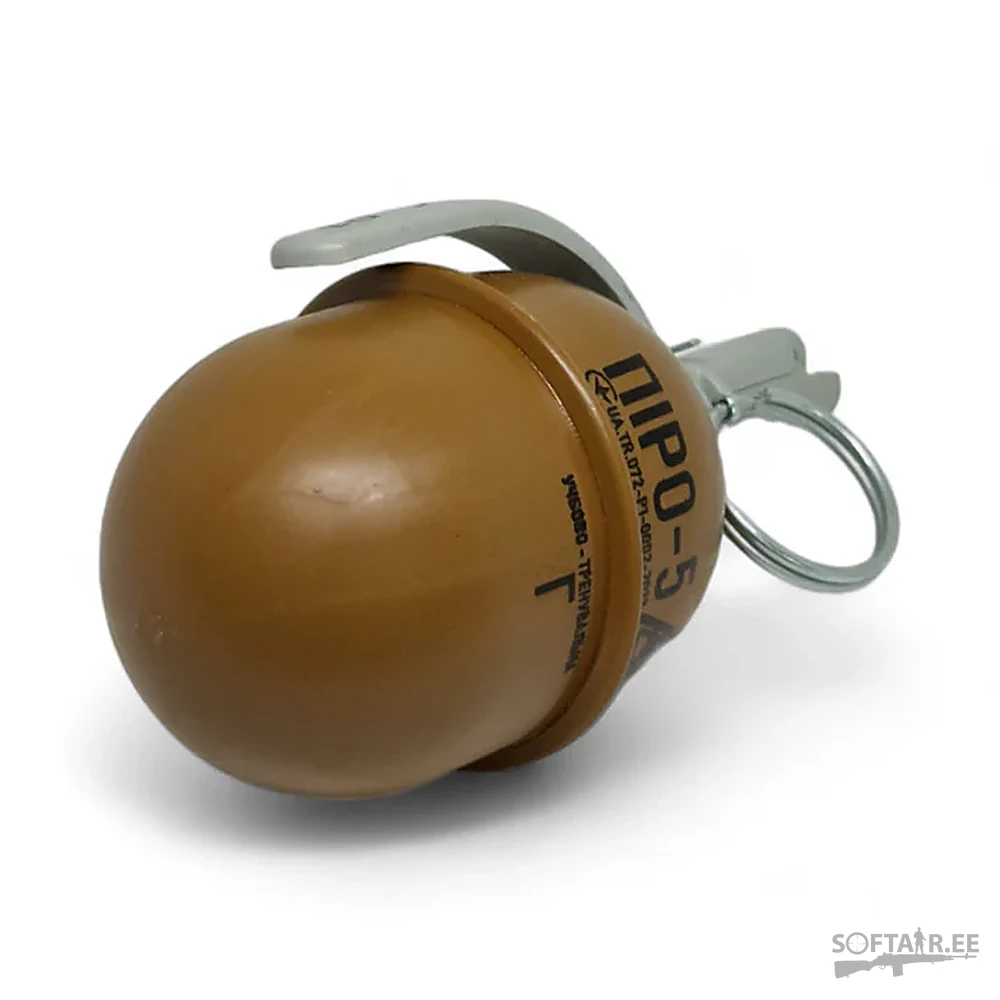

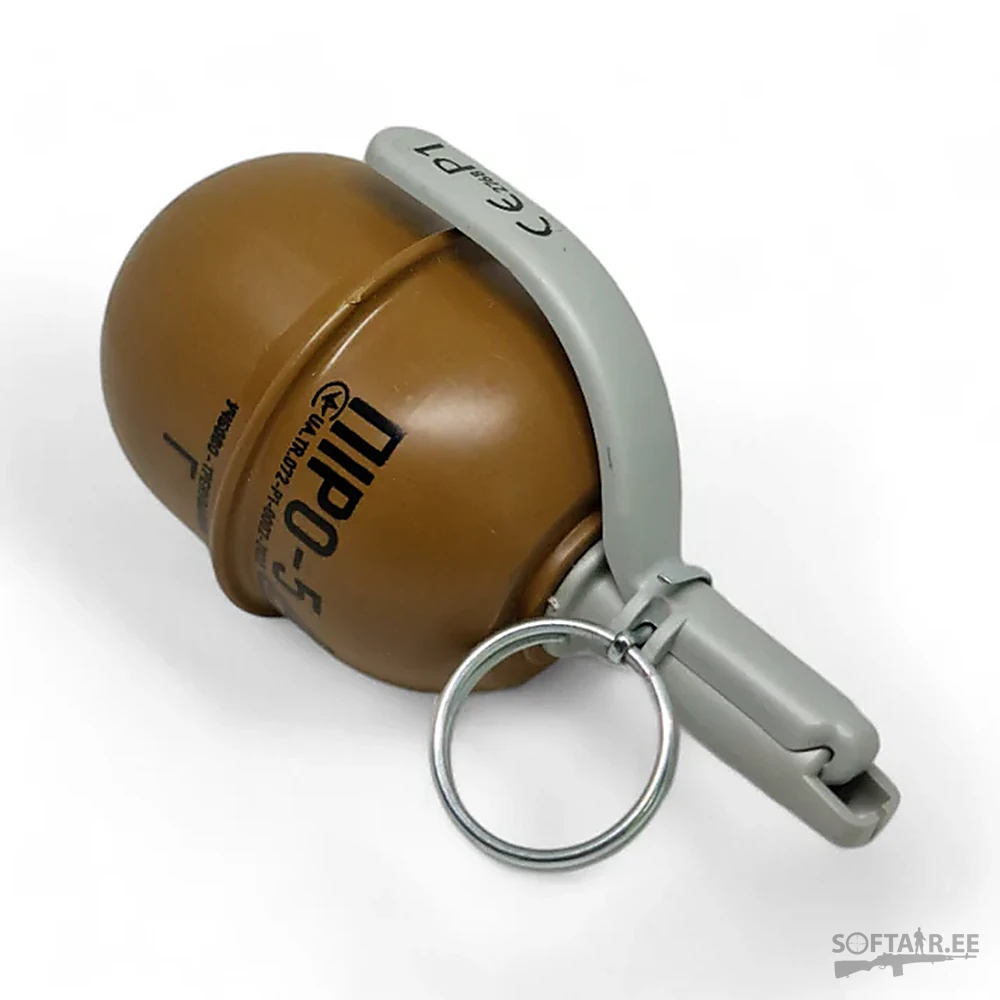

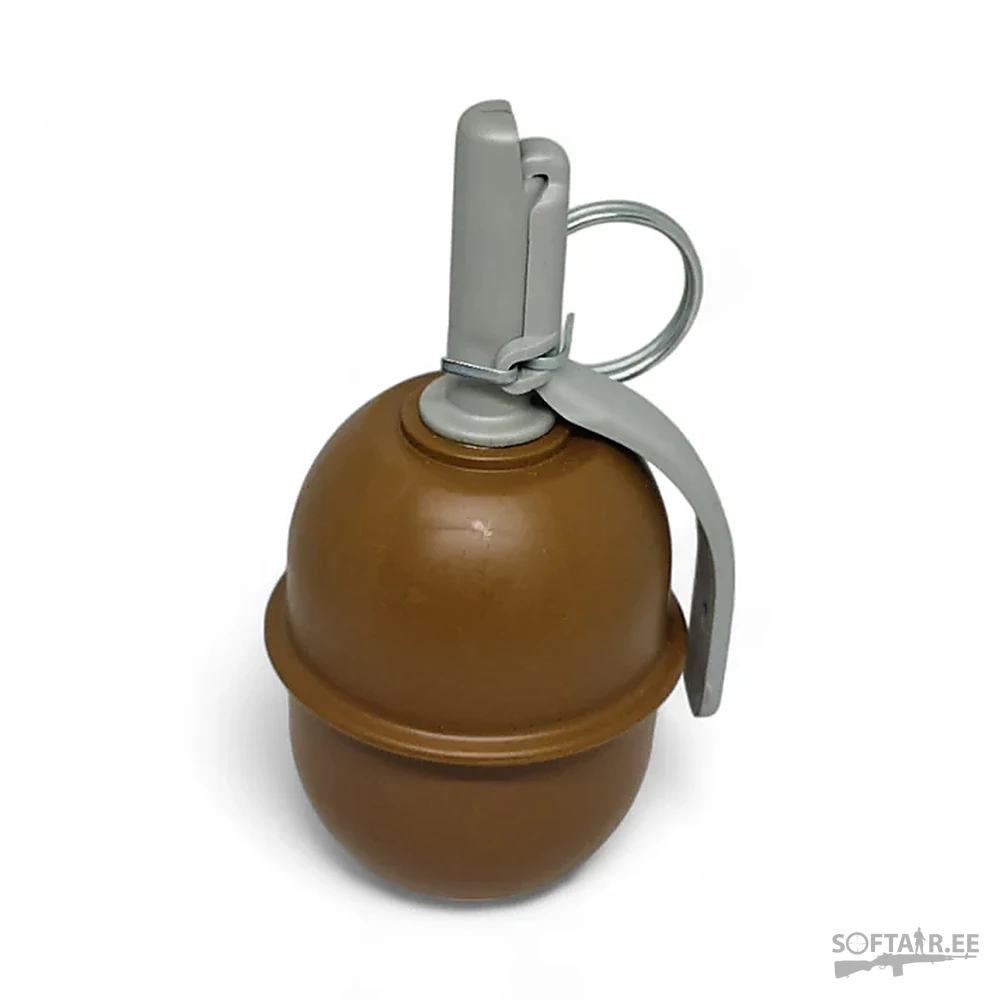

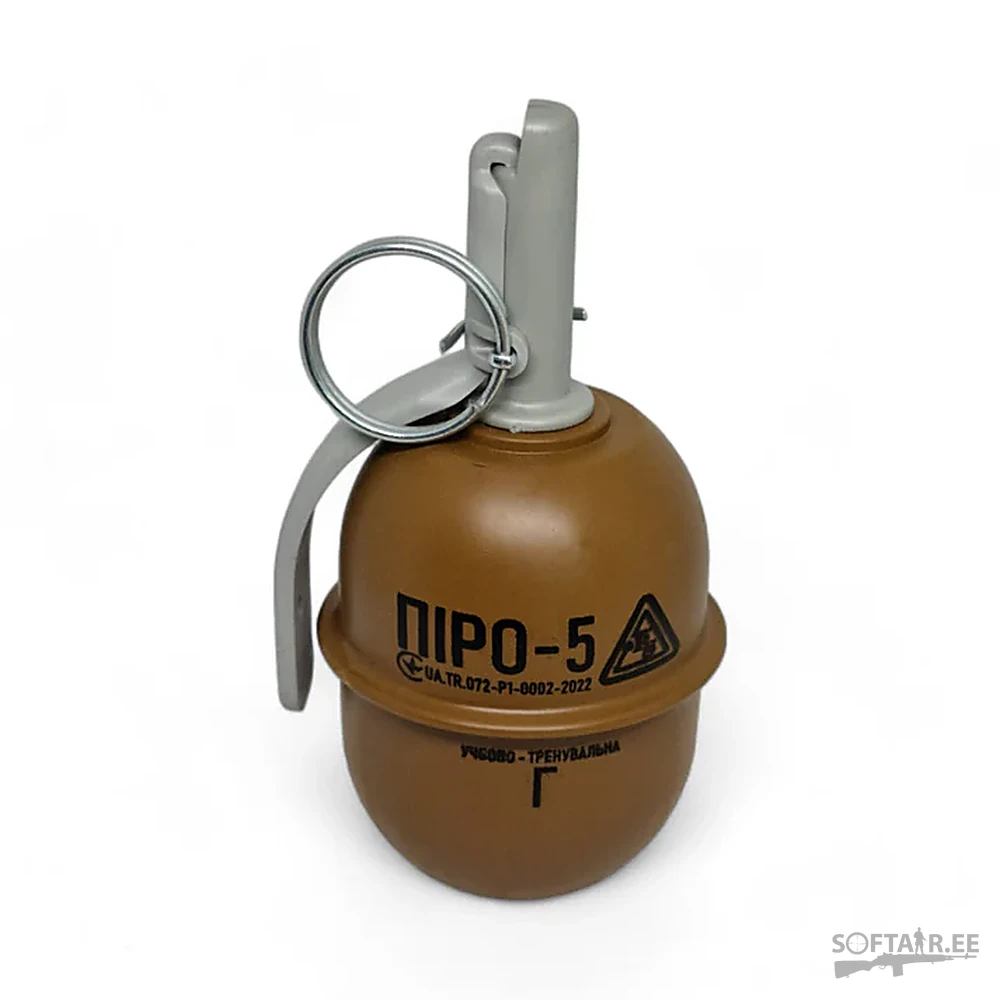

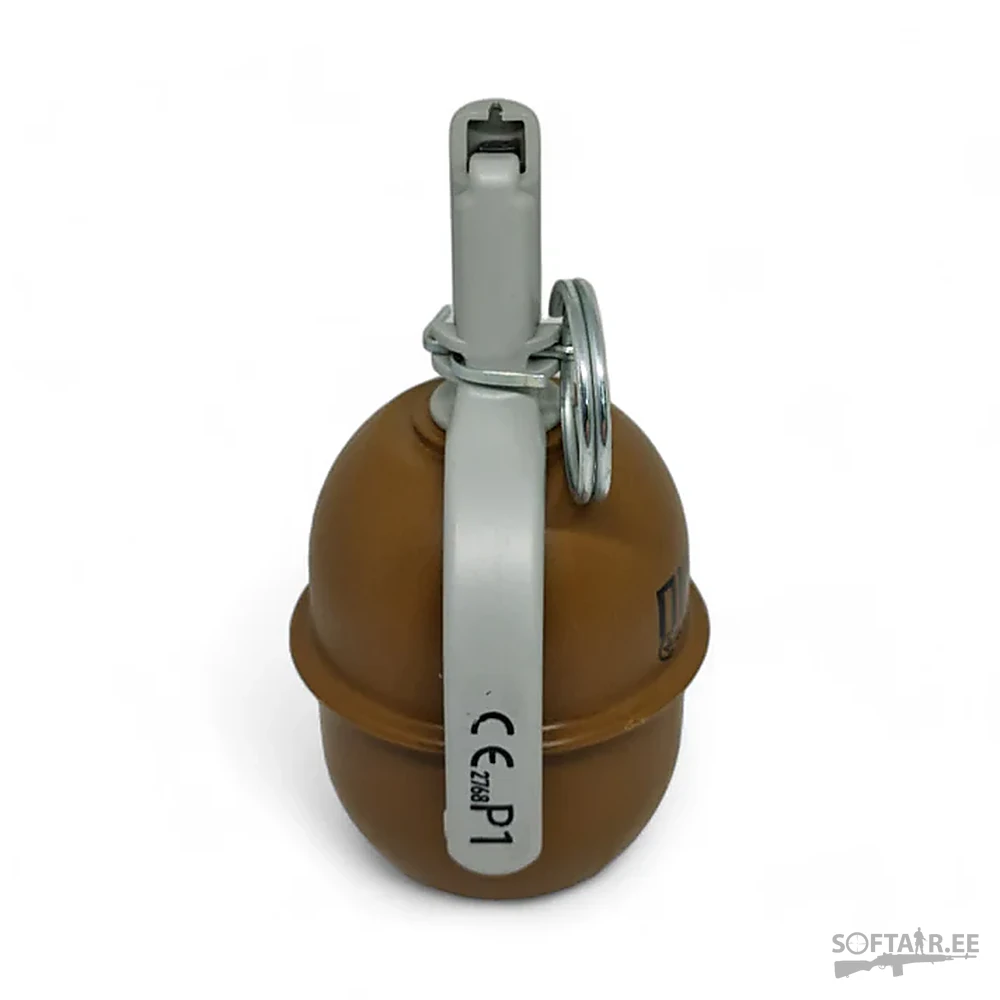

RGD-5 pea filled grenade

PIRO RGD-5 simulation grenade with pyrotechnic effect of category P1 with solid peas as filler to simulate debris. It imitates the Soviet style RGD-5 combat defensive grenade in size and principle of operation. The product has a large mass of pyrotechnic mixture, so it makes a louder explosion. It is used in military training events, airsoft, paintball, and military reconstructions at specially designated ranges and sites outside public places. For safe primary handling skills and the principle of operation of the RGD-5 grenade.

Product only 18+

User Manual PYRO-5 EN

Pyromechanical device
Certificate No.: 2021/0079 / PWB (module B)
egistration number: 2768-P1-0079/2019

The user must read the manual and follow the instructions provided by the manufacturer.

The device is ideal for airsoft, paintball, military reenactments and grenade safety training. It should be used in specially designated areas.

Product Information:

Body: ABS-plastic
Filling and mass: PYRO-5 PEASE – peas and white chalk, 240 grams (+/- 10%)
Time delay after initiation: 3,0-5,0 seconds
Initiating device: igniter that initiates mechanically
Safety clip: safety bracket (lever)
NEC: NEC not more than 1 – 1.5 gram in a single product
Category: P1
Hazards: Acoustic emission no more than 120 dB
Danger area radius: 15 meters
Water resistance: IP66 (Note: Protected from rain and short term immersion)
Expiry date: 24 months from manufacturing date

How to initiate the grenade:

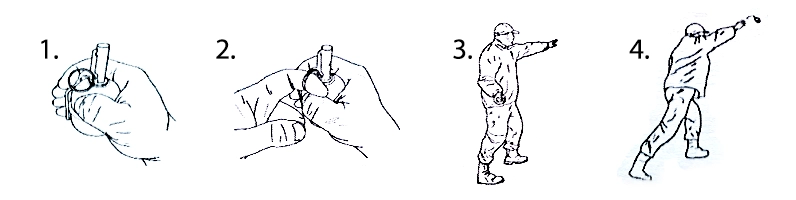

To use the grenade, grasp it with your right hand, ensuring that the fingers hold the safety lever down against the grenade body. Before throwing, use the ring to insert the index finger of the left hand into the ring and pull it to release the safety (fig. 2). You can hold the grenade in your hand as long as the lever is not released (pic. 3). Chose the target and pick the right moment to throw the grenade at the intended target (pic. 4). Once the grenade is thrown, the safety lever detaches under the pressure from the striker spring and flies off with a popping noise, releasing the striker. In 3,0-5,0 seconds the pyrotechnic element inside the grenade will explode, dispersing the fragments in radius of 15 meters.

Warning!

Persons under the age of 18 years are not allowed to use the product.
Do not handle the product without wearing protective eyewear.
Do not pick up the product after initiation. Wait for at least 10 minutes.
Do not disassemble or redesign the product.
Do not use outside of training ranges or other specially designated areas.
Do not use near those facilities and structures where fire hazard exists.
Do not use expired products, or products with visible defects of the body.
Keep away from heat sources.
Storage and Disposal:
Dud or expired grenades shall be soaked in water for 24 hours and then disposed together with domestic waste. Operate at temperatures between -30°C to +40°C and relative humidity less than 80%. Store in a place inaccessible to children. Store in the original packaging at temperatures between -30°C – +40°C and relative humidity less than 80%.
